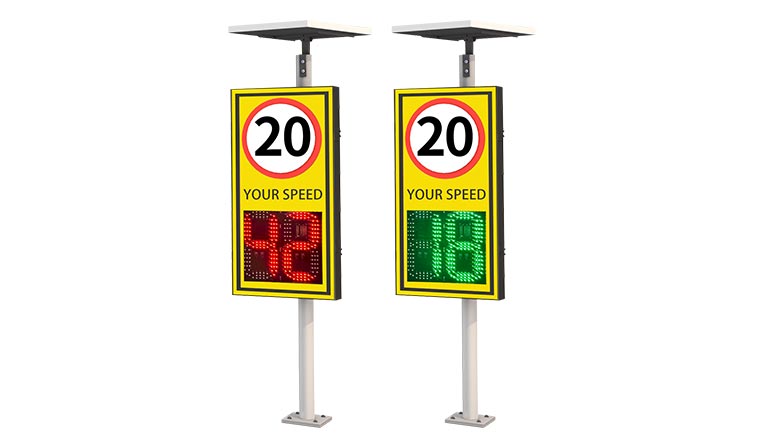

2 digit 2 color radar speed sign

Energy-saving 2 digit 2 color radar speed sign

( 1 Year Warranty 88 LPR radar speed sign)

Our Products

LED intelligent traffic signal light series
- — High flux traffic signal
- — 100mm traffic light series
- — 200mm traffic light series
- — 300mm traffic light series
- — Traffic lgiht module
LED countdown timer series
- — LED intelligent traffic signal light series
- — LED countdown timer series
- — LED street light
- — Vehicle loop detector
- — Intelligent traffic light controller system
- — Other product
LED street light
- — LED solar street light series
- — LED main power street light
Vehicle loop detector
- — Single channel loop detector
- — Dual channel loop detector
- — traffic camera detector
- — Infrared photocell sensor
- — Radar opening sensors
Intelligent traffic light controller system
LPR Radar Speed Sign
Smart zebra crossing
- — Led Brick Light
- — led Lane Light
- — Infrared voice warning post light
- — Pedestrian Sign
Traffic pole light
Solar Portable Trailer
Other product
- — LED portable traffic signal light
- — LED solar flashing light series
- — LED Arrow board traffic light series
- — Pedestrian Push Button

Our Solutions

Features/Benefits Specifications Project Download

The Solar Radar Speed Limit Sign uses radar speed detection and LED display technology to show drivers their speed in real time. The system includes three main components: a speed limit sign, a radar speed detector, and an electronic LED display. When multiple vehicles are detected, the display shows the speed of the fastest vehicle.

Designed as a compact and cost-effective solution, the solar Radar Speed Limit Sign offers high visibility, low power consumption, and easy portability. It is suitable for improving road safety in neighborhoods, work zones, and speed-controlled areas.

The sign provides real-time speed feedback using radar measurement. Drivers traveling within the speed limit can see a green speed display, while overspeeding vehicles trigger a red warning display to encourage safer driving habits.

The system can be powered by standard 220V mains electricity or by a solar panel and battery setup, making it ideal for remote roads, highways, and locations without easy power access.

For enhanced enforcement, the sign can also integrate with a speeding camera to capture images of speeding vehicles and send records to a control center.

Product advantage:

1.The mobile phone APP to set parameters within 10 meters, and can supportApple,Android and Hongmeng operating systems.

2.10 brightness levels for clear visibility in different lighting conditions.

3. Dual-color red and green LED display screen.

4.Equipped with professional traffic radar for accurate, reliable, and real-time vehicle speed detection.

5. Built-in snapshot recording stores up to 20,000 speeding records, viewable through the mobile app.

6. License Plate Recognition (LPR) camera displays captured plate numbers directly on the screen.

7. Supports SD card storage up to 256GB for local recording.

8. Multi-layer optical lens delivers sharp image quality and realistic scene capture.

9. A reserved 4G connectivity port allows future integration with a control center.

10.Supports recognition of license plates from multiple countries and regions, with up to 99% accuracy.

11.Customizable radar speed limit display options.

12.Supports custom warning messages and multiple languages for different countries. Short text is recommended for best display visibility.

Display parameter:

LED Screen	Total 234 (red and green two-in-one)
LED Brightness	red, 120°, 5050, luminous intensity (550 – 750 mcd/LED)
LED Brightness	Green, 120°, 5050, luminous intensity (800 – 1400 mcd/LED)
Light decay	10000h/3 years working time,
3M Mode Material	3M engineering grade(yellow or white can be optional
Front speed limit panel	30 km/40/50/60(optional)
Visible distance:	Above 300 Meters
Battery:	3pcs 13ah lithium battery
Solar panel:	60watt
Continuous rainy days	7-10 days
PCB material	Epoxy glass cloth laminate (FR4), using Kingboard A2 sheet, thickness ≥1.6mm
DC Power Input	12 V
Continuous rainy days	7-10 days
Power consumption	≤15W

APP setting:

Parameters:	>Description
Radar Direction:	two-way detection or two lanes
Speed unit	km/h or Mile /h can be choose
Communications	Wifi
Sensitivity	0-112 (The smaller the number,the higher the sensitivity
Brightness	1-10(1 is the darkest, 10 isthe brightest, default is 5)
Speeding records	Speeding records can beextracted and saved in EXCELand TXT formats (up to 20, 000records can be recorded)

radar parameters:

Working voltage	>Solar powered DC12V
Radar working frequency	24. 125 GHz or 24.200 GHz
Detection speed range	10-250KM/H
Detection distance	Standard 200Meters (100meters, 50meters )
Strobe	SS300 Doppler (FCC approved)
Output Power (EIRP)	20dBm
Antenna Angle	Horizontal: 30°, Pitch: 16°(3dB Beamwidth, ActualDetection Angle Greater Than4 Lanes)
Speed measurement error	+1 to +3 KM/H (when theangle between the directionof motion and the radar beamazimuth is 0 degrees)
Radar response time	≤50ms
